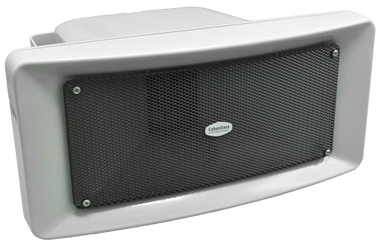

CyberData 011457 - SIP IP66 Outdoor Horn
Hover over image to zoom
Cyberdata
![Pin It](http://pinterest.com/pin/create/button/?url=https://dtasia.net/cyberdata-011457-sip-ip66-outdoor-horn&media=https://cdn10.bigcommerce.com/s-f76d48h/products/1648/images/1407/CyberData-011457-SIP-IP66-Outdoor-Horn__02116.1715743875.1280.1280.png?c=2&description=Digital Techniques - CyberData 011457 - SIP IP66 Outdoor Horn, <span class="ProductDetailsPriceIncTax">AUD1,856.80 (inc Tax)</span> <span class="ProductDetailsPriceExTax">AUD1,688.00 (exc Tax)</span> (https://dtasia.net/cyberdata-011457-sip-ip66-outdoor-horn))
Product Description
The CyberData SIP IP66 Outdoor Horn provides an easy method for implementing a loud IP-based overhead paging system for loud areas, warehouses, manufacturing areas, and outdoor areas.
The interface is compatible with most IP PBX servers that comply with the SIP RFC 3261. For non-SIP environments, the speaker can be configured to listen to multicast address and port number combinations to form paging zones.
CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData VoIP Products.
Features
- Support for security code access for SIP paging
- Autoprovisioning via HTTPS
- HTTPS web based configuration
- HTTP Command Interface
- 802.11q VLAN tagging
- Configurable event generation for device health and status monitoring
- Sealed network cable gland
- User-uploadable tones and up to 9 page messages
- Digital volume control
- Loud ringer function - second SIP extension
- 10 channel prioritized Multicast ports
- Built-in diagnostics
- Delayed page support - buffer call
- Cisco SRST
Specifications
| Ethernet I/F | 10/100 Mbps |
| Protocol | SIP RFC 3261 Compatible |
| Power Input | PoE 802.3at or 802.3af |
| Audio Output | 802.3at: 107.7 (+/- 0.2) dBC @1M and 1kHz 802.3af: 104.8 (+/- 0.2) dBC @1M and 1kHz |
| Payload Types | G.711 a-law, G.711 µ-law, and G.722 |
| IP Rating | IP66 |
| Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Dimensions* | Length: 14.404 in. [366 mm] Width: 10.630 in. [270 mm] Height: 6.772 in. [172 mm] (without stand) Height: 9.291 in. [236 mm] (with stand) |
| Weight Boxed Weight | 6.6 lbs. [3.0 kg] 8.8 lbs. [3.99 kg] |
| Compliance | CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
| Warranty | 2 years limited |
| Part Number | 011457 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
Warranty Information
2 years limited warranty subject to correct use as per the technical and user manuals.
Back to warehouse following submission of RMA on support page as per the procedures and documentation.
All RMA's need to be returned in original packaging.
