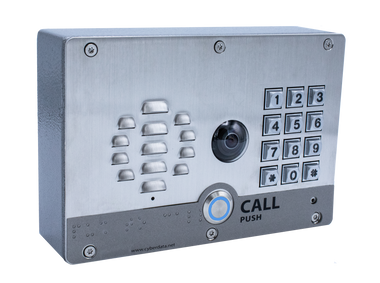

This outdoor intercom with h.264 video connects to your VoIP phone system providing clear two-way audio, visual confirmation and secure access control.
This device is constructed to protect it from vandalism while the weatherproofing protects it from your elements.
If you are looking for an easy to install, secure access control intercom with camera and built-in dry contact to trigger doors and gates, this is it.
CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData VoIP Products.
Ethernet I/F | 10/100 Mbps |
Protocol | SIP RFC 3261 Compatible |
Power Input | PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included) |
Speaker Output | 2 Watts Peak Power |
On-Board Relay | 1A @ 30 VDC |
Payload Types | G.711 a-law, G.711?-law, G.722, and G.729 |
Video Codec | H.264 Baseline |
Camera Resolution | 320 x 240 |
SIP Video Payload | Baseline profile @ 320x240 |
Video Lens Angle | 72 degrees, with 30 degree mechanical adjustment |
Network Security | TLS/SSL 1.2 |
IP Rating | IP65 |
Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
Storage Altitude | Up to 15,000 ft. (4573 m) |
Dimensions* | Length: 7.480 inches [190 mm] Width: 2.284 inches [58 mm] Height: 5.118 inches [130 mm] |
Weight Boxed Weight | 2.8 lbs. [1.27 kg] 4.0 lbs. [1.81 kg] |
Compliance | CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
Warranty | 2 Years Limited |
Part Number | 011414 |
Note | Electronics are conformal coated for environmental protection. |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
2 years limited warranty subject to correct use as per the technical and user manuals.
Back to warehouse following submission of RMA on support page as per the procedures and documentation.
All RMA's need to be returned in original packaging.
