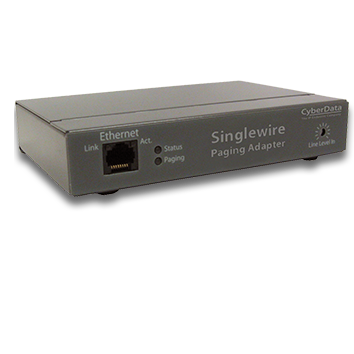

011280 - InformaCast Enabled Paging Adapter
Hover over image to zoom
Cyberdata
![Pin It](http://pinterest.com/pin/create/button/?url=https://dtasia.net/011280/&media=https://cdn10.bigcommerce.com/s-f76d48h/products/342/images/409/011280__92603.1715743875.1280.1280.png?c=2&description=Digital Techniques - 011280 - InformaCast Enabled Paging Adapter, <span class="ProductDetailsPriceIncTax">AUD1,448.70 (inc Tax)</span> <span class="ProductDetailsPriceExTax">AUD1,317.00 (exc Tax)</span> (https://dtasia.net/011280/))
Product Description
The new CyberData Singlewire Paging Adapter (SPA) is for use with Singlewire's paging and emergency notification software InformaCast® or InformaCast CK.
The Singlewire Paging Adapter provides a direct connection to legacy analog paging systems enabling InformaCast paging events to be broadcast. The on-board relay can be controlled using InformaCast GPI/O commands or can be set to activate when a page has begun.
The SPA supports a Line-In input for playing MOH from a remote source.
Features:
- InformaCast
- 10k Ohm line out and 600 Ohm connectors for interfacing with analog amplifiers
- 802.11Q VLAN support
- Web-based configuration and firmware upload
- PoE 802.3af enabled (Power-over-Ethernet)
- 19-inch rack mount option
Specifications
| Protocol | InformaCast V4.0 and later |
| Ethernet I/F | 10/100 Mbps |
| Power Input | PoE 802.3af or 48VDC |
| Operating Temperature | -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F) |
| Payload Types | G711 |
| Regulatory Compliance | FCC Class A, UL 60950 |
| Page Port Output | Balanced 600 Ohm 5VPP |
| Line In: Input Signal Amplitudes Input Impedance | 2.0 VPP maximum |
| Line Out: Output Signal Amplitudes Output Level Total Harmonic Distortion Output Impedance | 2.0 VPP maximum |
| Dimensions | 6.11” L x 4.05” W x 1.15” H |
| Warranty | 2 years limited |
| Boxed Weight | 1.8 lbs. |
Installation:
Warranty Information
2 years subject to correct use as per the technical and user manual.
Back to warehouse following submission of RMA on support page as per the procedures and documentation.
All RMA's need to be returned in original packaging.
