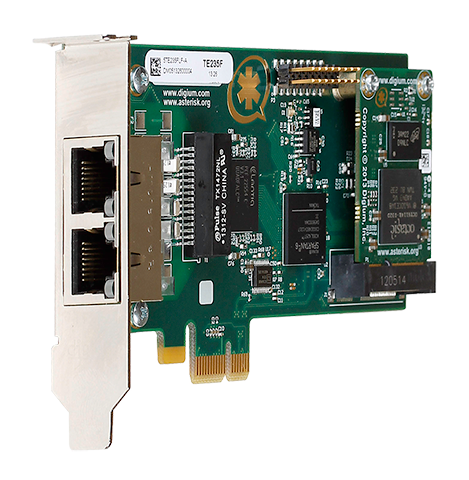

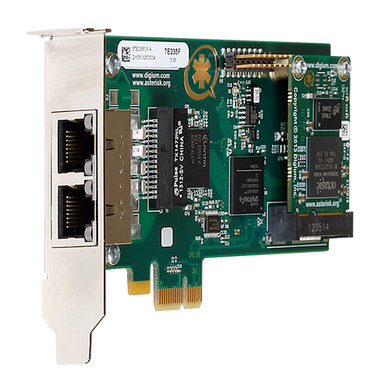

1TE235BF - Two (2) span digital T1/E1/J1/PRI PCI-Express x1 card and hardware echo cancellation (VPM064)

Hover over image to zoom

  • Image 1
Digium
USD$1,418.30
SKU:
1TE235BF
Availability:
Usually ships same day
Shipping:
Calculated at checkout

 Product Description

Digium's dual span digital interface cards support 48 (T1 / J1) or 60 (E1) connections to PSTN trunks over two spans (digital circuits). Built exclusively for use with Asterisk and Asterisk-based communications systems, the dual span cards provide the best value in digital connectivity.

Dual span digital cards are available in PCI and PCI-Express form factor. All dual span models be combined with Digium's VPMOCT064 echo cancellation module to provide echo cancellation across all channels.

Digium dual span digital cards are compatible with all versions of Asterisk using the DAHDi driver framework.  Asterisk and DAHDi are available for free from the Asterisk.org website. All cards include a five (5) year warranty and are eligibile for Digium's no-risk ESP guarantee.

Applications

  • Connect two T1 or E1 trunks to an Asterisk based PBX system
  • Add direct digital PSTN connectivity to Asterisk applications and solutions
  • Create in-line call monitoring and recording solutions

 Specifications

  • Up to 24 (T1/J1) or 30 (E1) simultaneous calls
  • Supports T1, E1 and J1 physical interface connections
  • Optional 128ms hardware echo cancellation module
  • Protocol support includes: ISDN PRI, Robbed-Bit, CAS
  • Industry standard RJ-45 port
  • Available in PCI and PCI Express form factors
  • 2 ports / 2 spans
  • 5 year warranty
  • Digium ESP risk-free guarantee
  • Asterisk and DAHDI supported (DAHDI 2.8 or later required for the TE235)
  • Switchvox supported (Switchvox 5.8.1 or later required for the TE235)

 Warranty Information

5 years subject to correct use as per the technical and user manual.

Back to warehouse following submission of RMA on support page as per the procedures and documentation.

All RMA's need to be returned in original packaging.
